Folding Aisle-chair

FOLDING ONBOARD AISLE WHEELCHAIR

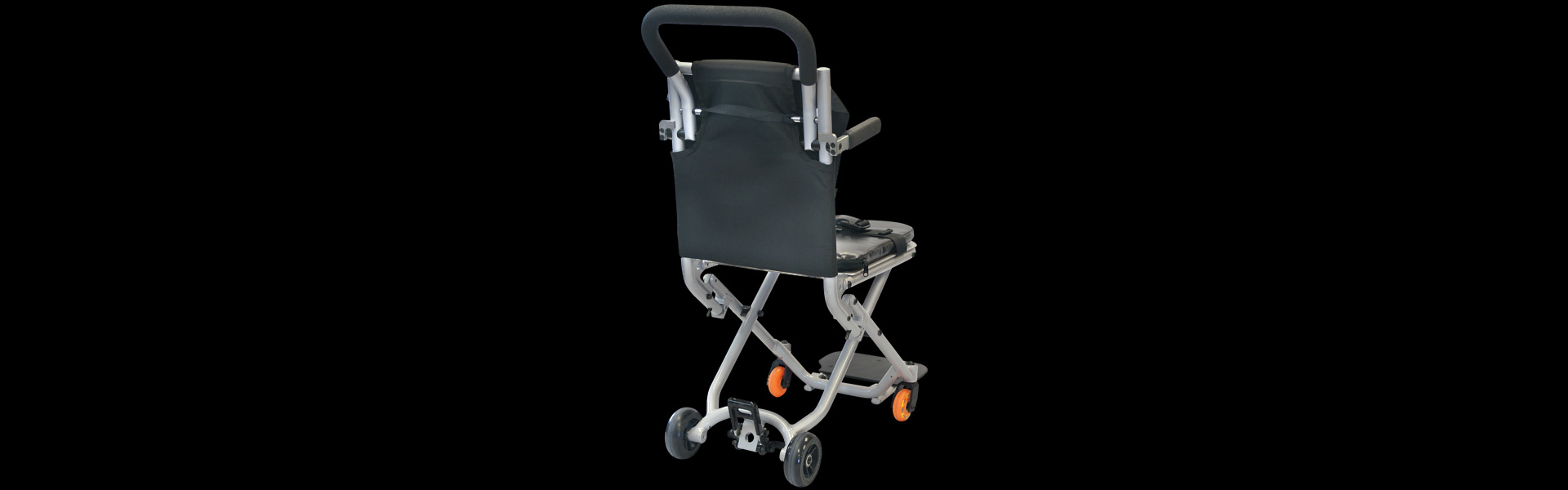

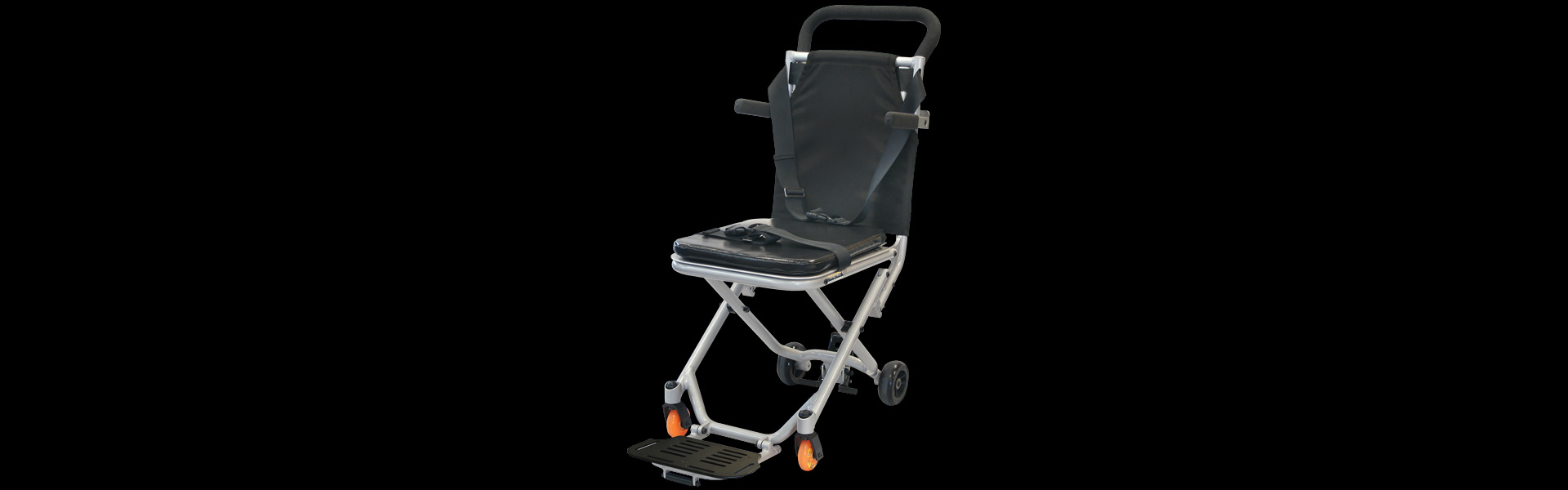

The Melrose Folding Onboard Aisle Wheelchair has been specially designed to fit down narrow passages and then folded up and stored. It will fit into tight spaces like non disabled public toilets, aircraft aisles, bus aisles, caravans and anywhere else your day wheelchair might not fit. This model folds down to only 230mm in height and 380mm wide so you can store it under the bed or in the corner of a wardrobe.

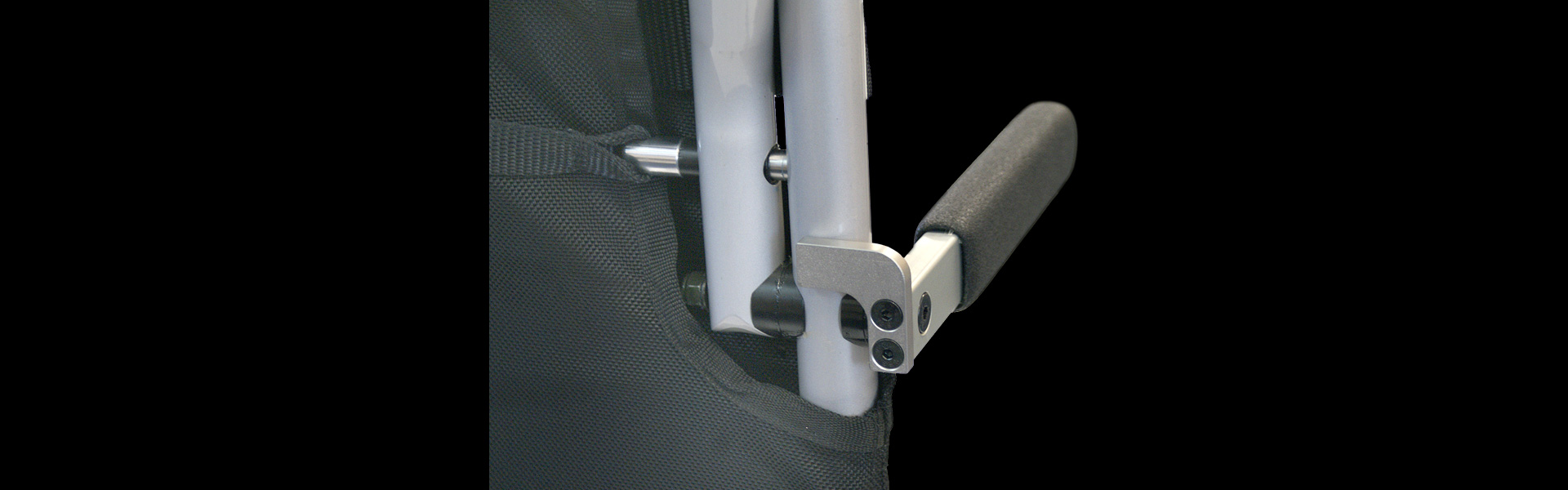

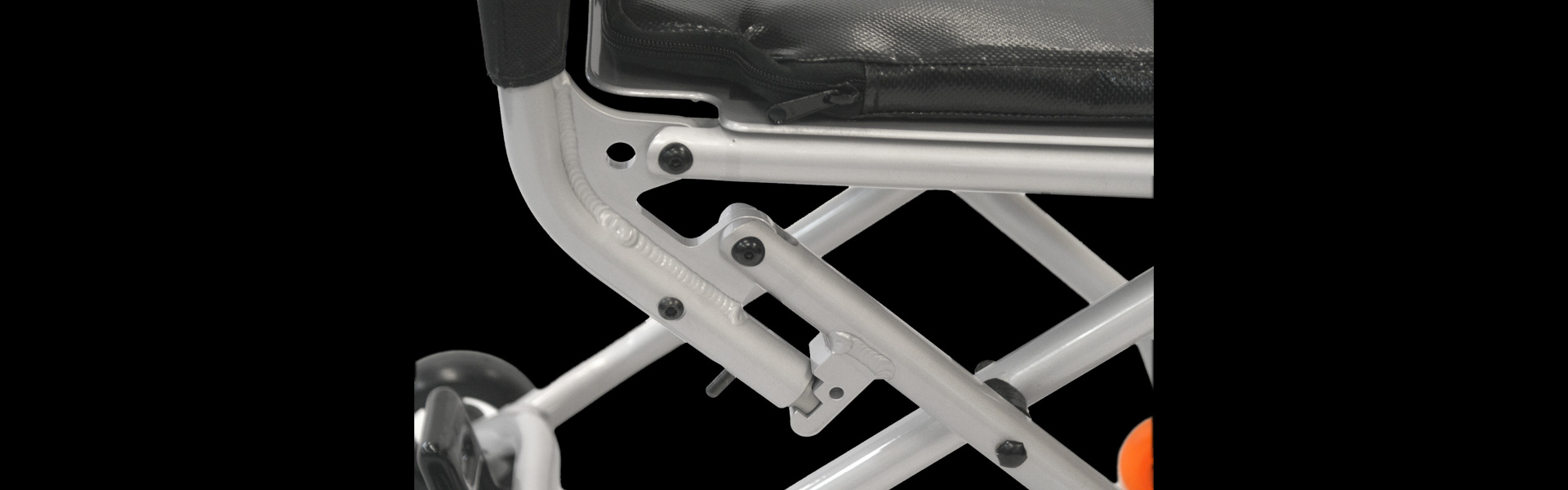

Two catches lock the chair into place as you unfold it, while two pins lock the push handle into place. Armrests fold down, these can help to provide lateral trunk support as well as the chest strap.

We can also provide quotes for bulk orders.

Standard Specifications


  • Aluminum frame
  • Dimensions:
  • - Seat Height from floor 430mm
  • - Seat Width 345mm
  • - Seat Length 430mm
  • - Seat Back Height from cushion 370mm
  • - Maximum Chair Width 390mm
  • - Weight 8.1kg
  • - Maximum user weight 120kg

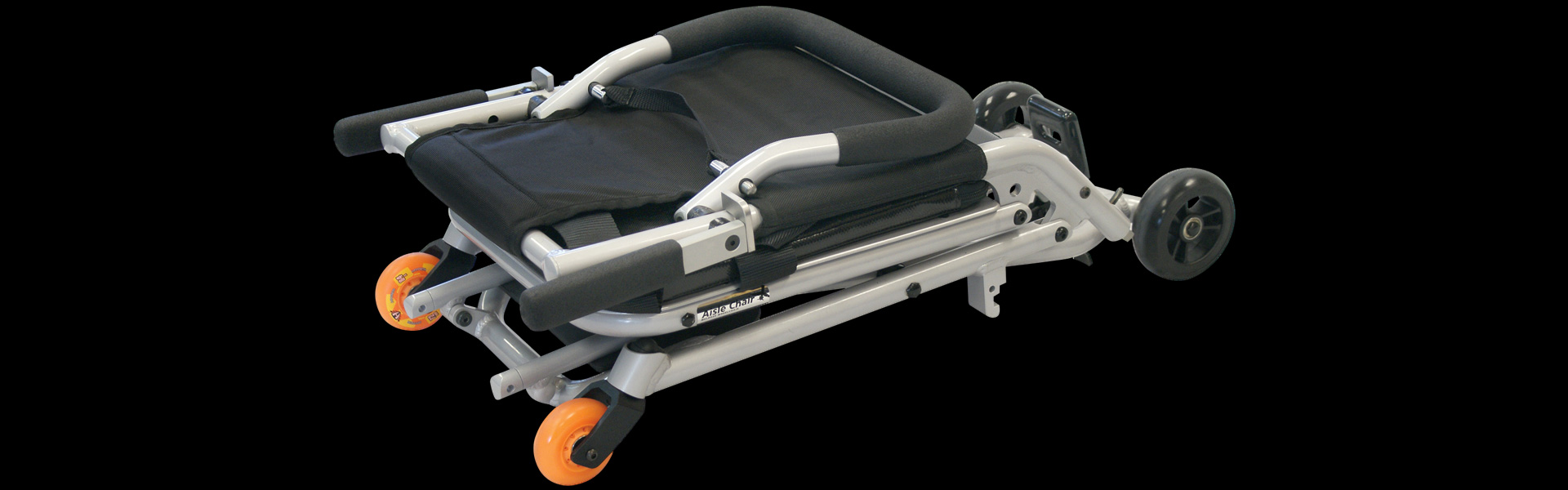

  • Dimensions Folded:
  • - Height 240mm
  • - Width 390mm
  • - Length 740mm
  • Solid 4" wide rear wheels

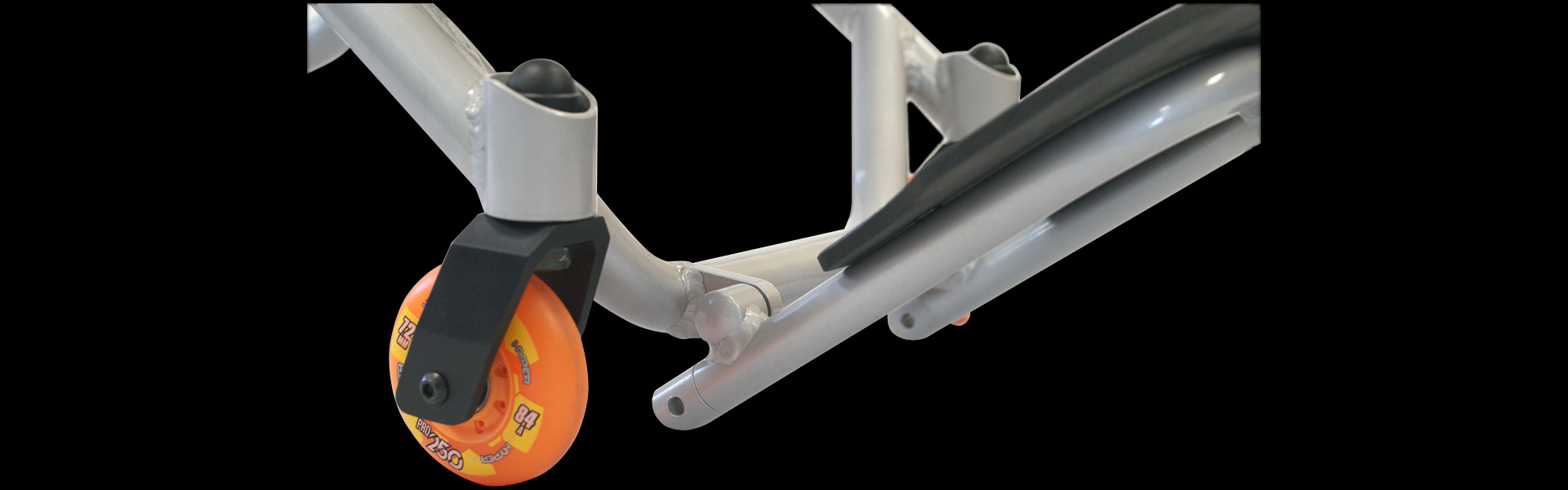

  • Solid rollerblade castors
  • Attendant foot brake system
  • Black fabric back
  • Solid sling
  • Cushion
  • Fold back armrests
  • Large foldable push handle
  • Leg and chest straps with composite clasps
  • Large range of colours
  • Five-year frame warranty

Options and Accessories


  • Sign/logo written onto back upholstery
  • Fabric footplate cover
  • Attendant hand lever brake
  • Extra body straps (Hip)
  • Seatbelt style buckles on straps
